Auto Bottom Tray: The Complete Guide to Custom Packaging
Category: Custom Packaging | Published: March 2026 | Website: packagingbox.us
Introduction
In today’s competitive marketplace, packaging is more than just a protective shell — it is a brand ambassador, a sales tool, and a first impression. The Auto Bottom Tray has emerged as one of the most popular and practical custom packaging solutions for businesses across every industry. Whether you are packaging food products, cosmetics, electronics, or retail merchandise, an auto bottom tray delivers unmatched convenience, durability, and professional presentation.
This complete guide covers everything you need to know about auto bottom trays — from how they work and what materials are available, to their benefits, industries, and customization options.
What Is an Auto Bottom Tray?
An auto bottom tray, also commonly known as a crash lock bottom tray or snap lock bottom box, is a style of packaging box that features a pre-glued base panel. Unlike traditional boxes that require folding and interlocking tabs at the bottom, auto bottom trays lock into place instantly with a simple push — no tape, no glue, and no assembly tools required.
The top of the box may be open (tray style) or fitted with a separate lid, making it highly versatile for both retail display and protective shipping purposes. The term “auto bottom” refers to the automatic locking mechanism at the base, which is manufactured pre-glued at the factory and springs into position when the box is opened.
How Does an Auto Bottom Tray Work?
The magic of the auto bottom tray lies in its manufacturing process. During production, the bottom panels are pre-glued in a cross-lock configuration. When the flat-packed box is shipped, the glued base folds flat. When the packager opens the box, the base automatically snaps and locks into a rigid, four-sided tray base.
This mechanism is achieved through a combination of two inner panels and two outer panels at the base, which interlock when pressure is applied from above. The result is a base that is significantly stronger than standard reverse tuck or straight tuck ends, making it ideal for heavier products.
Pro Tip: Auto bottom trays are especially popular for high-volume packaging operations because they reduce packing time by up to 60% compared to manually assembled boxes.
Types of Auto Bottom Tray Styles
Auto bottom trays come in several variations depending on the product and presentation requirements.
1. Open-Top Auto Bottom Tray The most common style — an open tray with an auto-locking base. Perfect for products that are displayed facing upward, such as food items, candles, or cosmetic products in retail settings.
2. Auto Bottom Tray with Lid Combines an auto bottom tray base with a separate fitted lid or sleeve. This style is widely used for gift packaging, luxury products, and premium retail boxes where full enclosure is needed.

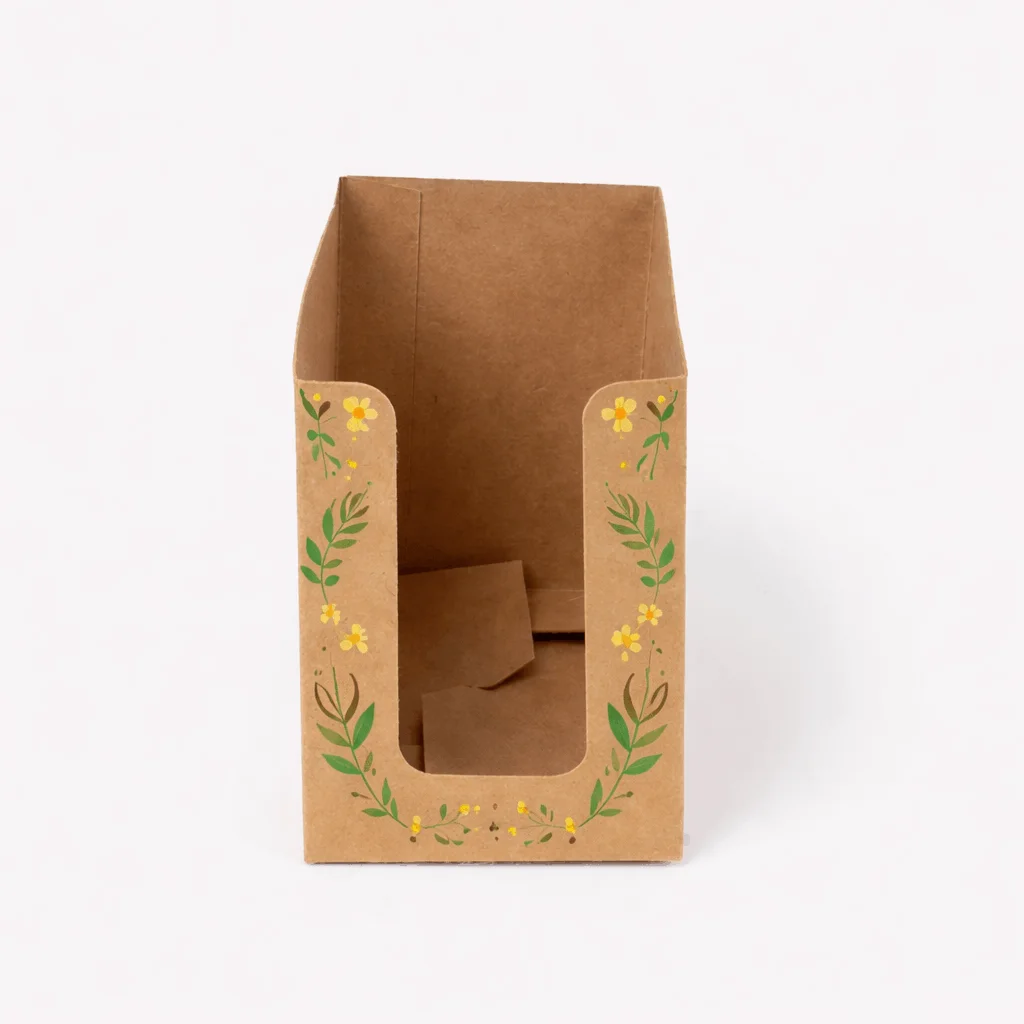

3. Auto Bottom Display Tray Designed specifically for counter-top or shelf display. Features a low front panel for product visibility, often used in point-of-sale packaging for confectionery, snacks, and small retail items.

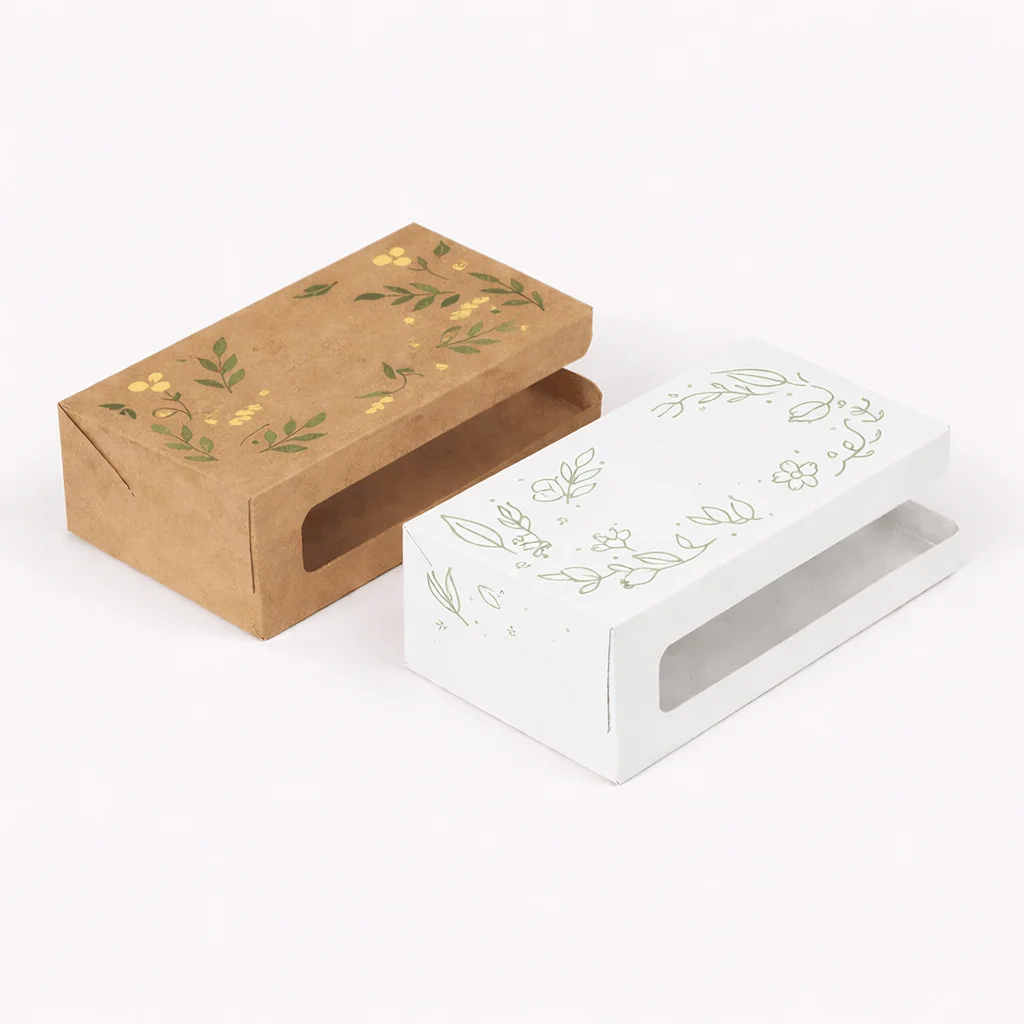

4. Auto Bottom Tray with Window Incorporates a transparent PVC or PET window cut-out on one or more panels, allowing customers to view the product inside without opening the package. Common in food, cosmetics, and toy packaging.
5. Auto Bottom Shipping Tray A reinforced, corrugated auto bottom tray built for e-commerce and logistics. Prioritizes structural integrity to protect products during transit.
Materials Used in Auto Bottom Trays
Choosing the right material is essential for product protection, printing quality, and overall presentation.
SBS Cardboard (C1S / C2S) Best for cosmetics, retail, and food packaging. Offers excellent print quality and a smooth surface finish. Available in 300 gsm to 450 gsm thickness.
Corrugated Cardboard Best for shipping, electronics, and heavy items. Provides superior strength and cushioning against impact during transit.
Natural Brown Kraft Best for organic, artisan, and eco-friendly brands. Gives a natural, earthy appearance and is fully biodegradable.
White Kraft Best for bakery, food, and gift packaging. Combines a clean, bright look with strong eco credentials.
Rigid Board Best for luxury, jewelry, and premium retail. Offers a premium feel and maximum structural protection.
Holographic and Metallic Paper Best for cosmetics and confectionery. Highly eye-catching and delivers strong shelf appeal.
Industries That Use Auto Bottom Trays
The versatility of the auto bottom tray makes it one of the most widely adopted packaging formats across industries. Businesses in the following sectors regularly use auto bottom trays:
Food and Beverage, Cosmetics and Beauty, Electronics and Hardware, Pharmaceuticals, Retail and Apparel, Candles and Home Decor, Bakery and Confectionery, Subscription Boxes, Toys and Games, Gift and Luxury Packaging, CBD and Cannabis, and E-Commerce and Shipping.
Key Benefits of Auto Bottom Tray Boxes
Faster Packaging Line Speed Because the base self-assembles, workers simply pop the box open and begin filling immediately. This significantly increases throughput on high-volume production lines, reducing labor costs and packaging time by up to 60%.
Superior Structural Strength The four-panel crash lock base distributes weight evenly across the bottom of the box. This makes auto bottom trays significantly stronger than standard tuck-end boxes, reducing product damage during storage and shipping.
Professional, Polished Appearance Auto bottom trays create a flat, seamless base with no visible folds or overlapping flaps on the outside. This results in a cleaner, more professional presentation — essential for premium retail brands.
Cost-Effective at Scale Although auto bottom trays have a slightly higher per-unit manufacturing cost than plain tuck-end boxes, the savings in assembly labor and reduced damage rates typically result in a lower total cost of ownership at volume.
Flat-Pack Shipping Saves Storage Space Auto bottom trays are shipped flat and take up minimal warehouse space. When needed, they can be set up in under a second, making them ideal for businesses with limited storage.
Customizable to Any Brand From size and shape to material, finish, print, and add-ons, every aspect of an auto bottom tray can be customized to perfectly represent your brand and product requirements.
Customization Options for Auto Bottom Trays
At Packaging Box, we offer a full range of customization options to ensure your auto bottom tray stands out on the shelf and represents your brand perfectly.
Size and Dimensions: Any custom Length, Width, and Height in inches, mm, or cm to fit your exact product.
Material: Cardboard, Kraft, Corrugated, Rigid Board, Holographic, and Metallic Paper options available.
Printing: Full-color CMYK, Pantone spot color, single color, and Spot UV printing options.
Finish: Matte, Gloss, Soft Touch, and Textured lamination finishes.
Add-Ons: Foil Stamping, Embossing, Debossing, Window Cut-Out, and Ribbon options.
Lid Options: Open Top, Separate Lid, Sleeve, and Magnetic Closure styles available.
Eco Options: Recycled Board, Biodegradable materials, and Soy-Based Inks available on request.
Auto Bottom Tray vs. Other Box Styles
Understanding how the auto bottom tray compares to other common packaging styles helps you make the right decision for your product.
Assembly Speed Auto Bottom Tray: Instant auto-lock, no manual folding needed. Reverse Tuck Box: Requires manual folding and interlocking of bottom tabs. Straight Tuck Box: Requires manual folding and interlocking of bottom tabs.
Base Strength Auto Bottom Tray: Very high — four-panel crash lock distributes weight evenly. Reverse Tuck Box: Medium — relies on interlocking tabs which can loosen under weight. Straight Tuck Box: Medium — similar tab-and-slot base to reverse tuck.
Appearance Auto Bottom Tray: Clean and seamless — no visible flaps or overlapping panels on the base exterior. Reverse Tuck Box: Tabbed flap visible on the base exterior. Straight Tuck Box: Tabbed flap visible on the base exterior.
Best For Auto Bottom Tray: Heavy, premium, and high-volume retail products. Reverse Tuck Box: Light retail items with lower weight requirements. Straight Tuck Box: Light retail items with lower weight requirements.
Tips for Designing a Great Auto Bottom Tray
1. Match Material to Product Weight For heavy products over 2 lbs, opt for corrugated cardboard or a thicker SBS board at 350 to 450 gsm. For lighter retail items, 300 to 350 gsm SBS is typically sufficient and more cost-effective.
2. Use Full Bleed Printing for Maximum Impact Auto bottom trays have a large printable surface area. Full-bleed printing — where your design extends to all edges and panels — creates a far more premium and visually striking result than simple centered or label-style printing.
3. Add a Window for Product Visibility If your product has strong visual appeal, a die-cut window covered with clear PET or PVC film allows customers to see the item inside. This boosts purchasing confidence and significantly improves shelf appeal.
4. Choose Eco-Friendly Materials Where Possible Consumers increasingly choose brands that use sustainable packaging. Using recycled or FSC-certified materials and soy-based inks can meaningfully enhance brand perception and attract environmentally conscious buyers.
5. Order a Prototype Before Full Production Before committing to a large production run, always request a physical prototype or sample. This lets you verify dimensions, print quality, color accuracy, and structural integrity before going to full scale.
Frequently Asked Questions
What is the difference between an auto bottom tray and a crash lock box? They refer to the same product. Auto bottom tray, crash lock bottom box, and snap lock bottom are all names for packaging with a pre-glued base that automatically locks into position when the box is opened.
What is the minimum order quantity for custom auto bottom trays? Minimum order quantity varies depending on size, material, and customization requirements. Contact Packaging Box at sales@packagingbox.us to receive a custom quote within 15 minutes.
Are auto bottom trays suitable for food packaging? Yes. When manufactured with food-safe materials and inks, auto bottom trays are widely used for bakery items, confectionery, dry foods, and meal kits. Always specify food-safe requirements when placing your order.
Can I get auto bottom trays with custom printing? Absolutely. Full-color CMYK and Pantone printing, foil stamping, embossing, spot UV, and other options are all available. Your branding, logo, and design can be printed across all panels.
How long does production take for custom auto bottom trays? Standard production timelines are typically 10 to 14 business days after artwork approval. Rush production options may be available depending on order volume — contact us to discuss your specific deadline.
Do auto bottom trays ship flat-packed? Yes. All auto bottom trays are shipped flat-packed, saving significant storage and shipping costs. They set up instantly when needed with no tools or adhesives required.
What size auto bottom tray do I need? Auto bottom trays are fully custom-sized to your product dimensions. Simply provide your required Length, Width, and Height and our team will manufacture them to exact specifications.
Conclusion
The auto bottom tray is one of the smartest packaging investments a business can make. Its combination of instant assembly, exceptional base strength, professional presentation, and full customization makes it the go-to choice for brands that want packaging that works as hard as they do.
Whether you are in food, cosmetics, retail, electronics, or luxury goods, a custom auto bottom tray from Packaging Box will protect your product, elevate your brand, and streamline your packaging operation.
Contact us today to get a free quote in 15 minutes and discover why thousands of brands trust Packaging Box for their custom packaging needs.
